10 Year Structural Warranty
Frame and footbar. Moving parts and upholstery: 12 months. Consumables excluded.
Built for rehab
The Timber Therapy Reformer
From $5,600.00
10-Year Warranty · White Glove Delivery
Wood
Configuration
Springs
Add Your Studio Logo
Upholstery: Soft Taupe
Something went wrong - please try again.
White Glove Delivery
Placed in your room of choice, unpacked, packaging removed
Outfitting a clinic?
Multi-unit pricing. Proposal within 24 hours.
Free Floor Plan
Type your room size. See it drawn.
Complimentary Opening Kit
Pilates ring, weights and mats included

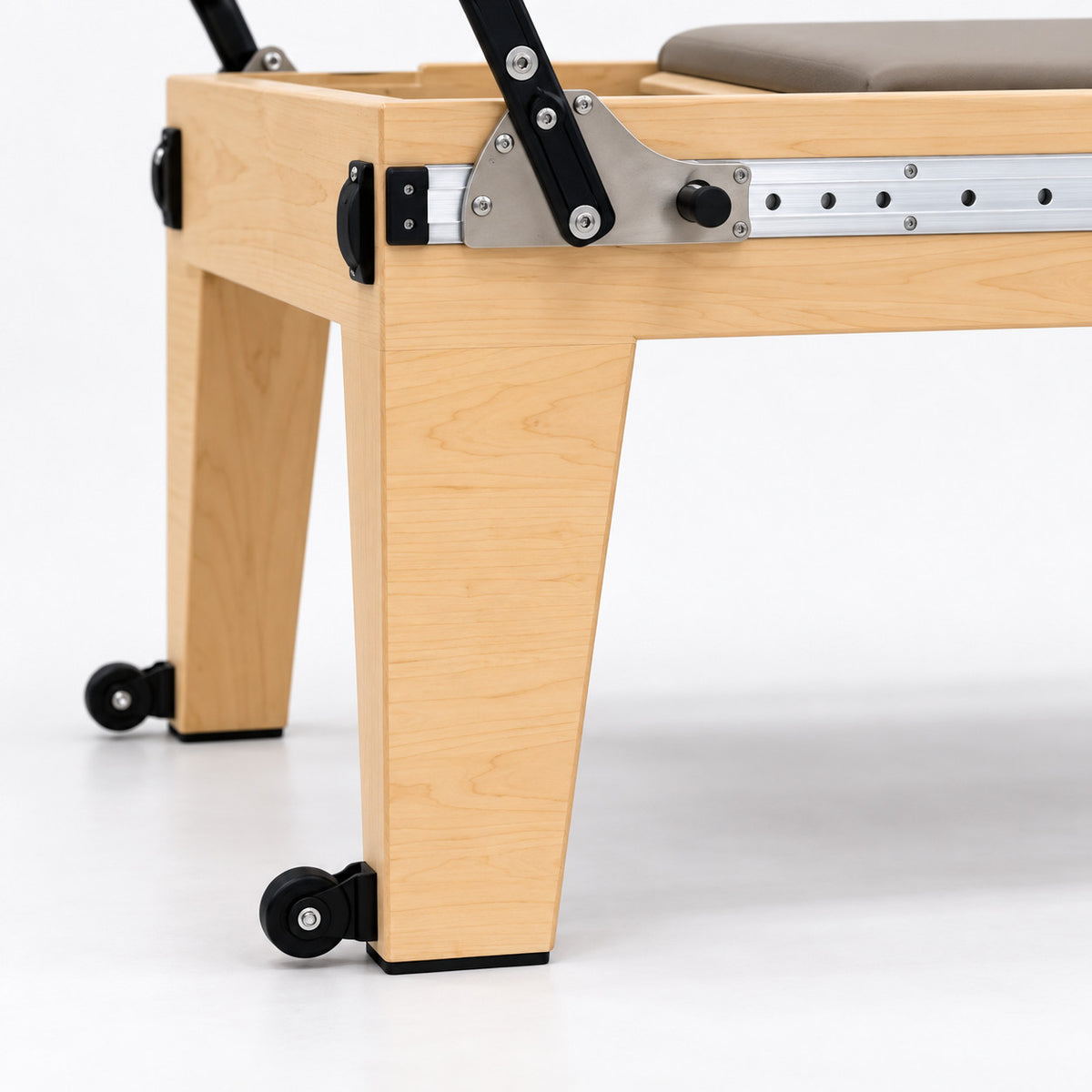

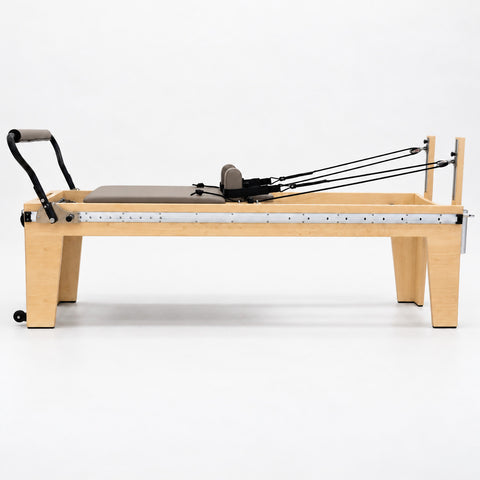

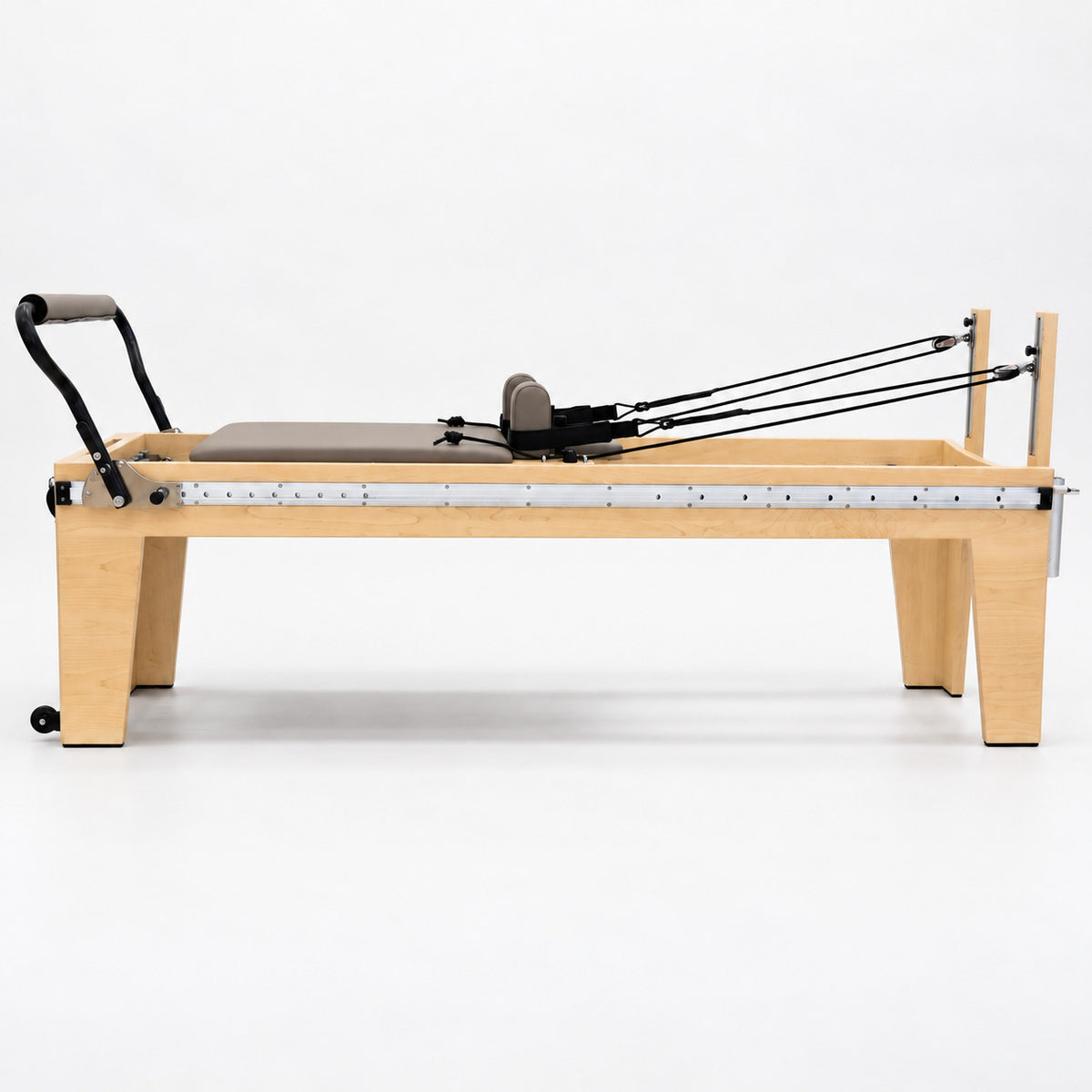

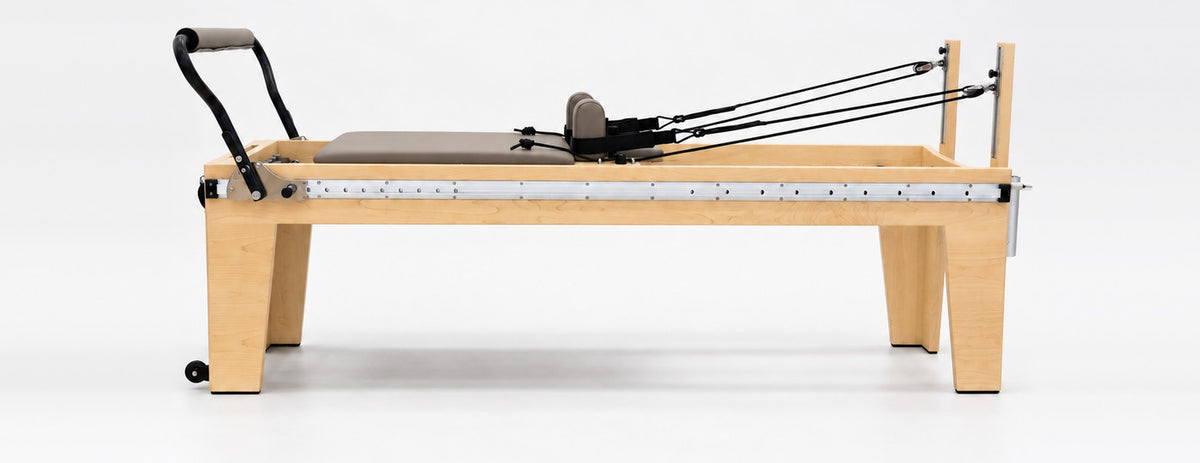

Rehab Height
A rehab reformer at table height.
Rehab Height raises the frame from 13.4 in to 24 in. Patients sit down and stand up the way they do at a treatment table, and the practitioner cues and assists standing upright. Footprint, springs, carriage and footbar stay the same.
13.4 in

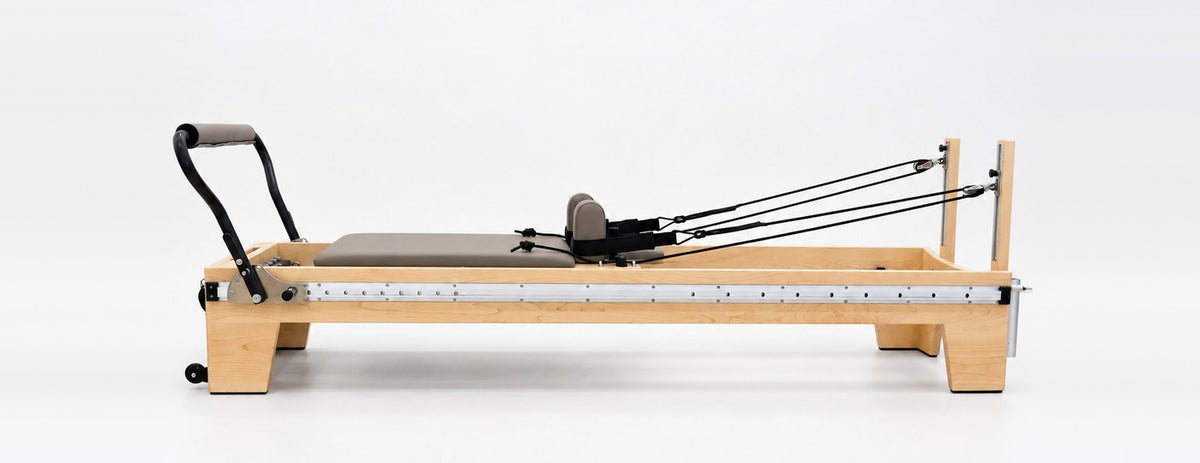

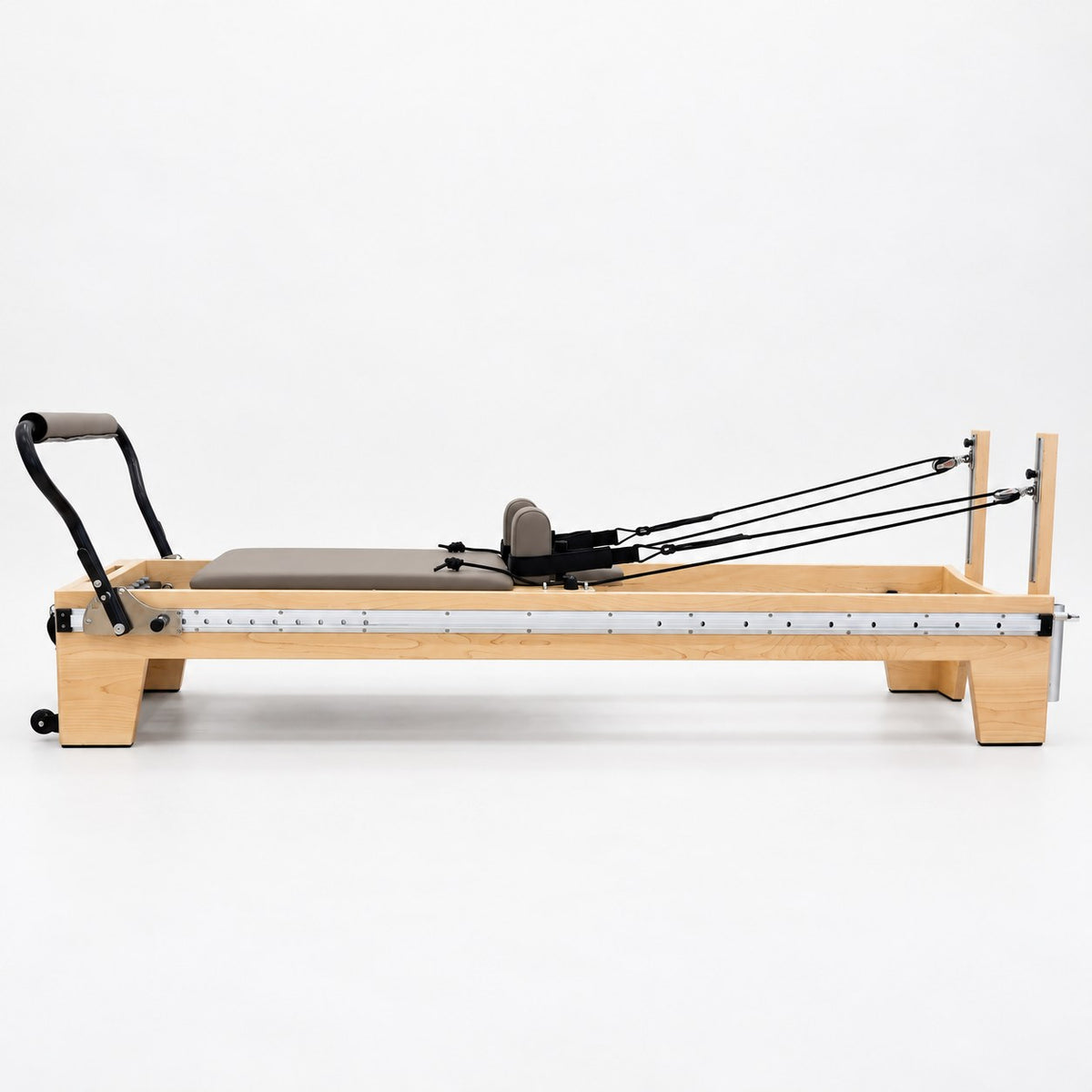

Studio Height
24 in
Transfers
Patients sit down and stand up at table height, without a deep squat to get on or off the carriage.
Hands-on work
Cue and assist standing upright, instead of kneeling beside the frame.
One clinic, both heights
Height is chosen per unit. Same 89.8 × 26.8 in footprint either way.

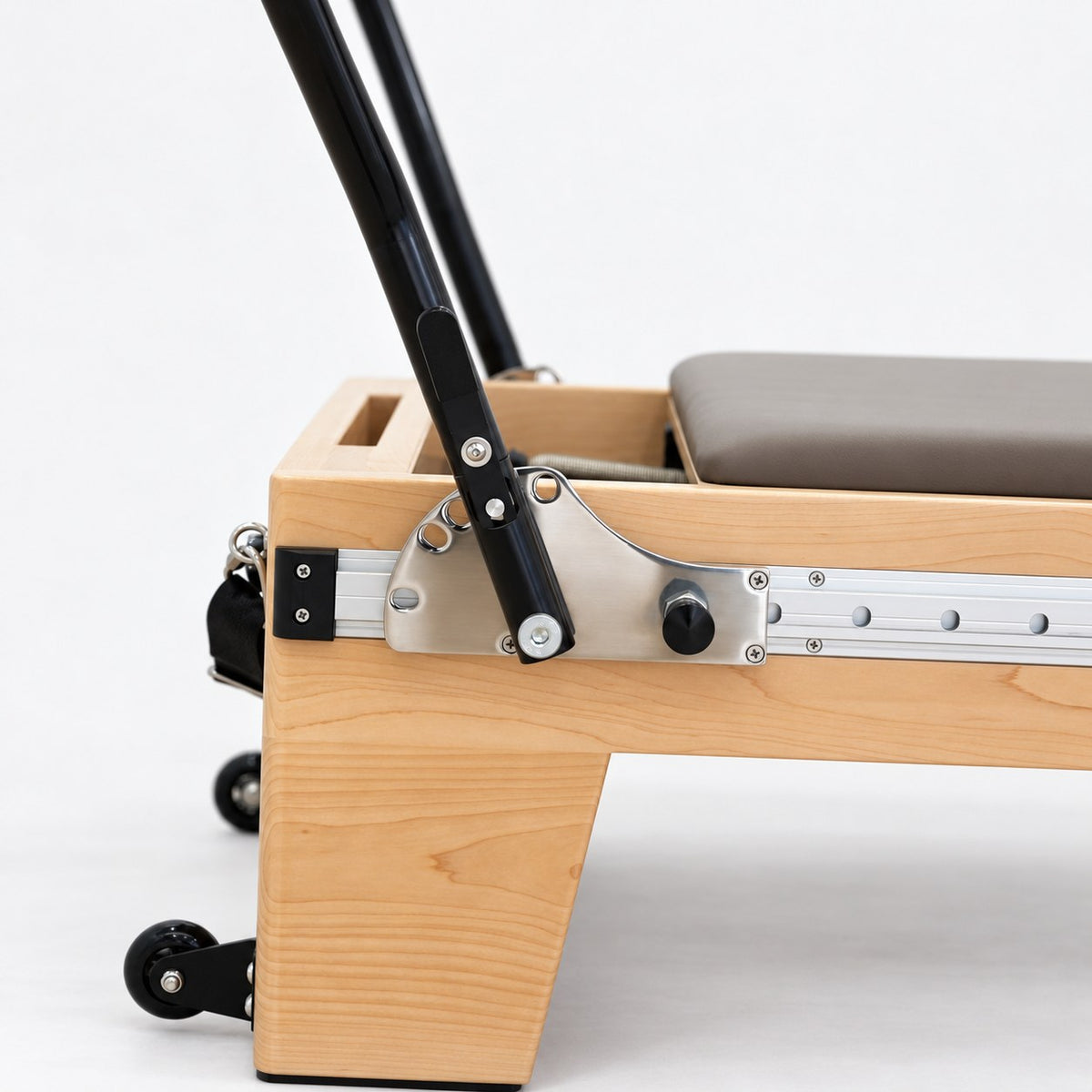

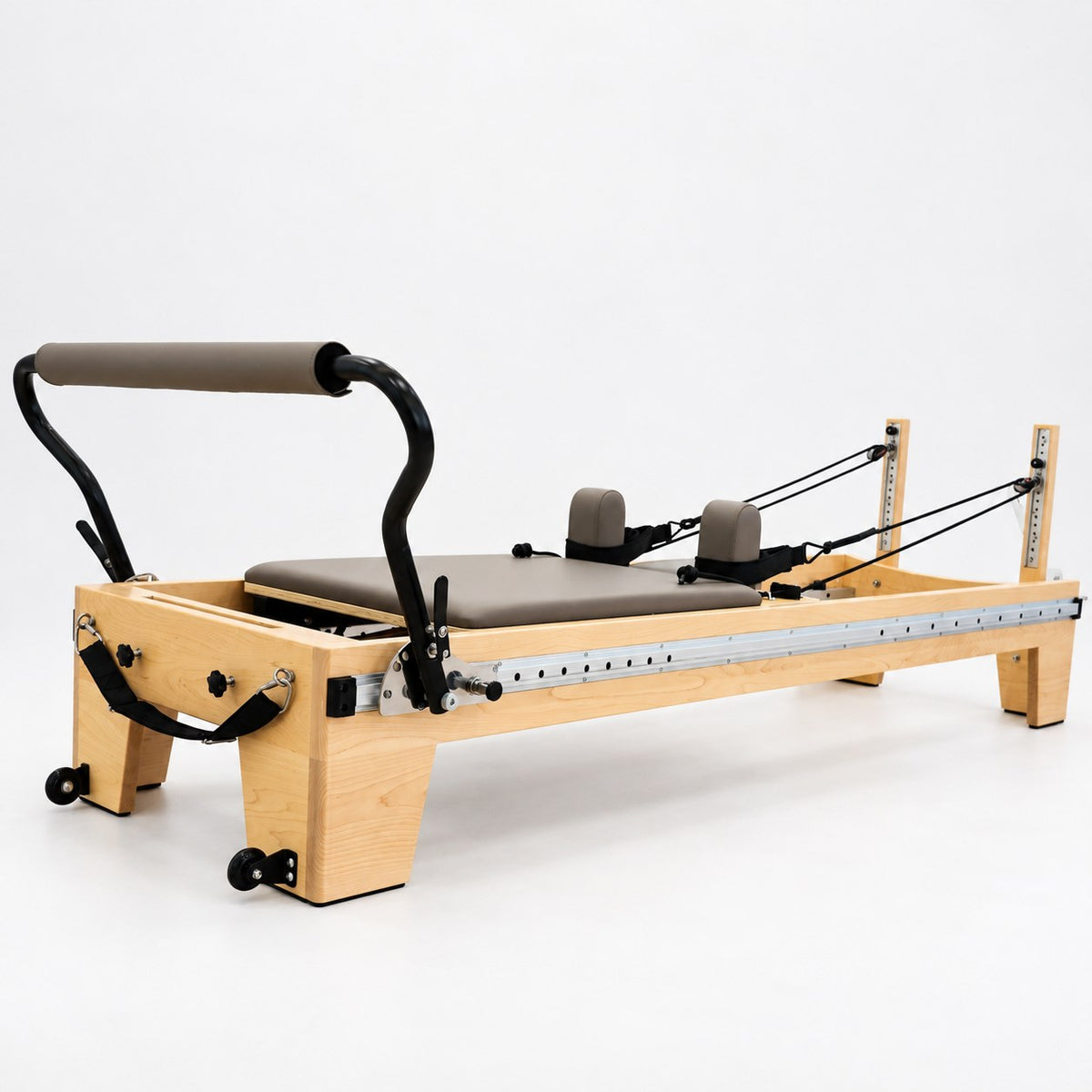

Sliding footbar
The footbar moves to the patient.
Instead of repositioning the patient, move the footbar. It travels the length of the frame on an aluminum side rail and locks at 19 positions, set by hand with no tools.
- 19
- locking positions
- 50 mm
- steps through the footwork range
- 100 mm
- steps toward the head end
Footwork range · 50 mm steps
Position 1 of 19
Foot end
Head end
10 positions · 50 mm apart
9 positions · 100 mm apart
lb1020304050606 in12 in18 in24 in30 in36 in

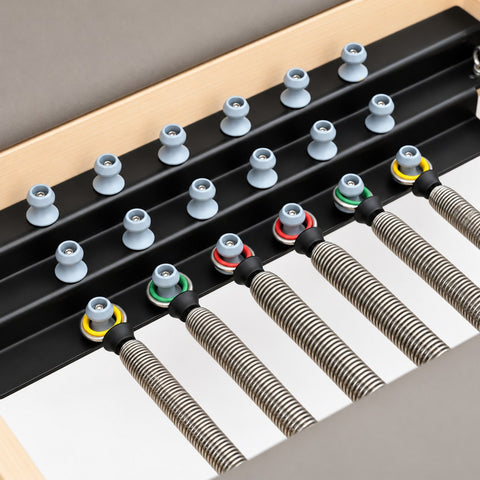

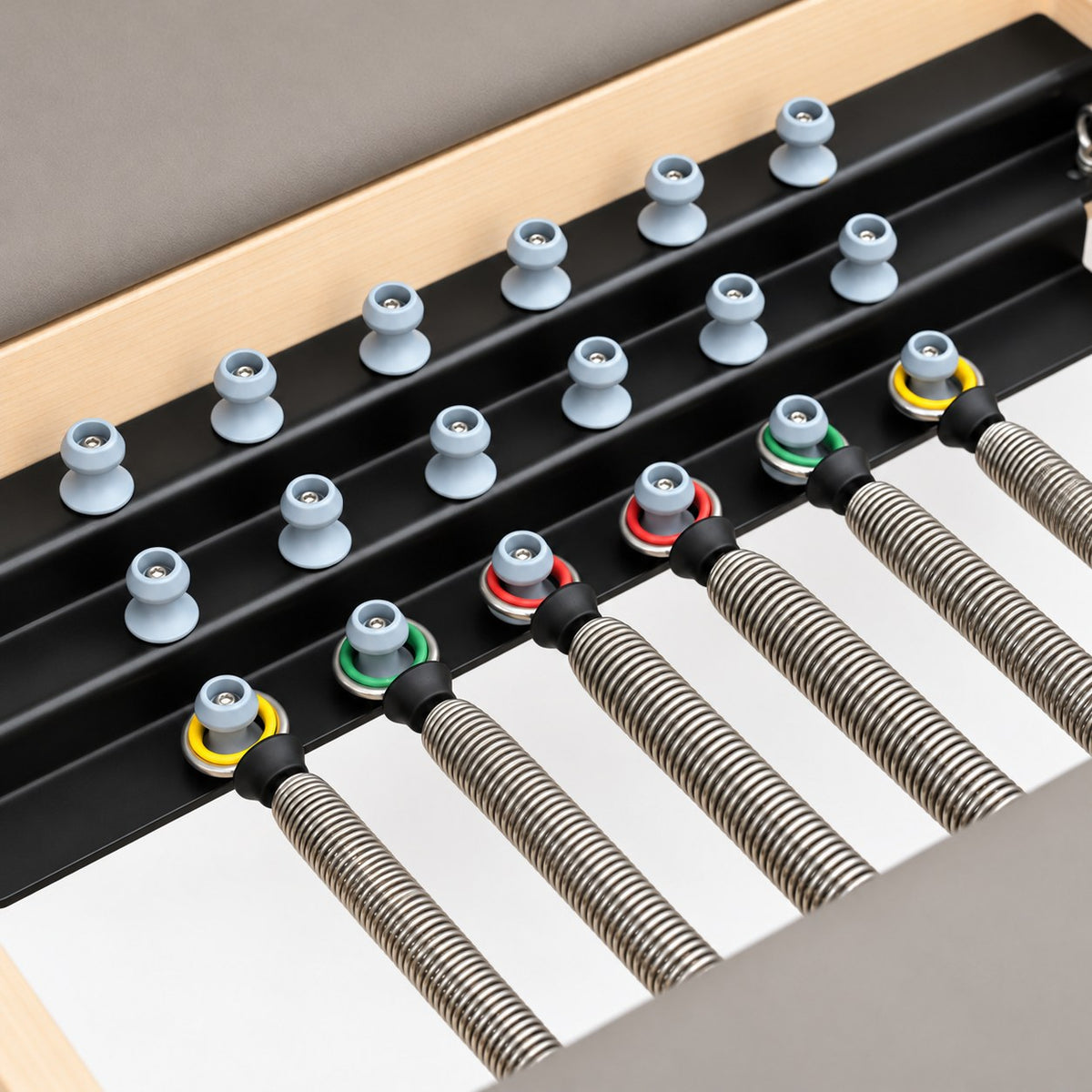

German springs
Resistance set to the patient.
Six springs of German DRAHTWERK WAGENER wire in four tensions. A patient can start on one very light spring at about 5 lb and work up to the heavy springs as strength returns.
- YellowVery light 5 to 17 lb
- BlueLight 10 to 30 lb
- RedMedium 15 to 44 lb
- GreenHeavy 17 to 53 lb
Your spring set
Choose the six springs for each unit with your order. Standard set: two yellow, two red and two green.
Engineering
Built for a full day of patients.
01
Sliding footbar, 19 positions
Set to each patient's leg length and range in seconds. Ten positions in 50 mm steps through the footwork range, nine in 100 mm steps beyond it.
02
Two frame heights
13.4 in for studio work. 24 in for transfers and hands-on cueing. Same footprint and mechanics at either height.
03
German springs, mixed per unit
Six springs of DRAHTWERK WAGENER wire in four tensions, from very light to heavy. Choose the mix for each unit; the color tells the setting at a glance.
04
Maple frame, aluminum rails

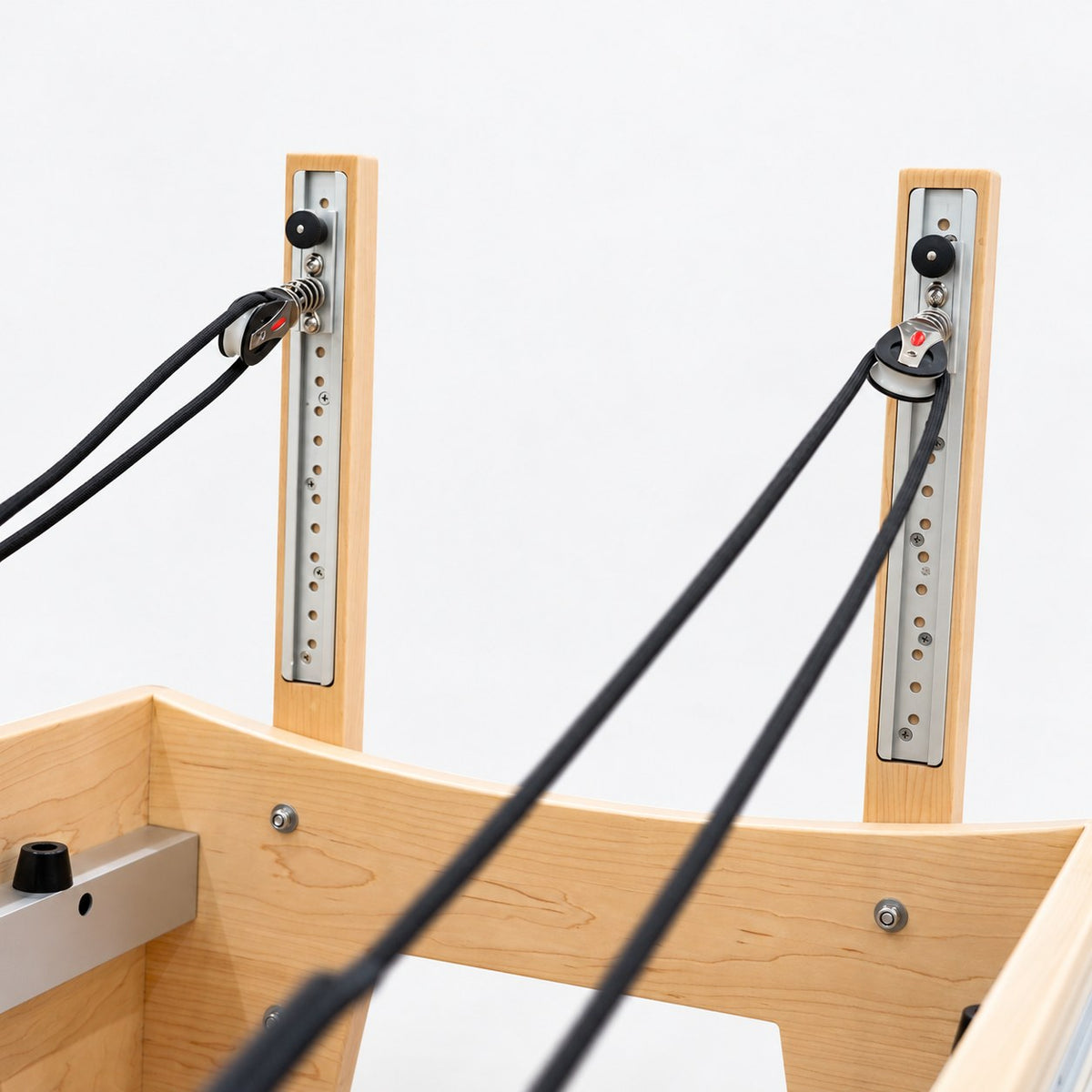

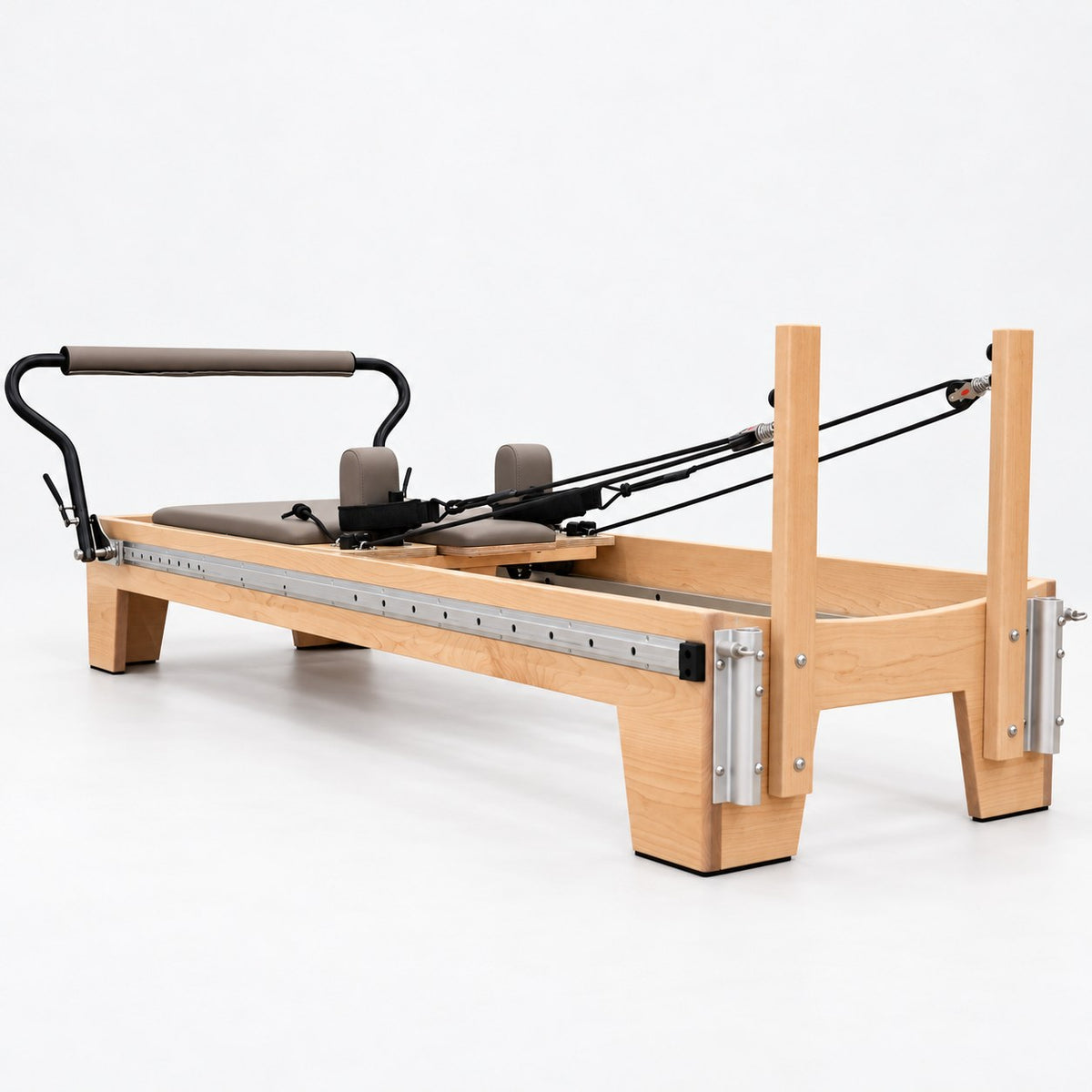

The footbar runs on an aluminum side rail. The rope pulleys move up and down aluminum tracks in the risers to suit each exercise.
Full specifications
- Frame: maple, upholstered to order in 26 colors
- Footprint: 2,280 × 680 mm (89.8 × 26.8 in)
- Frame height: Studio Height 340 mm (13.4 in), Rehab Height 610 mm (24 in)
- Sliding footbar: 19 locking positions on an aluminum side rail. 10 at 50 mm spacing through the footwork range, 9 at 100 mm toward the head end
- Springs: six, German DRAHTWERK WAGENER wire, four tensions (very light, light, medium, heavy), mix chosen per unit. Standard set: 2 yellow, 2 red, 2 green

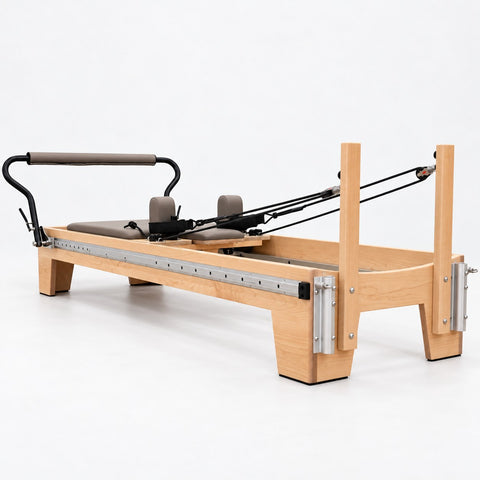

- Rope risers: height-adjustable pulleys on aluminum tracks

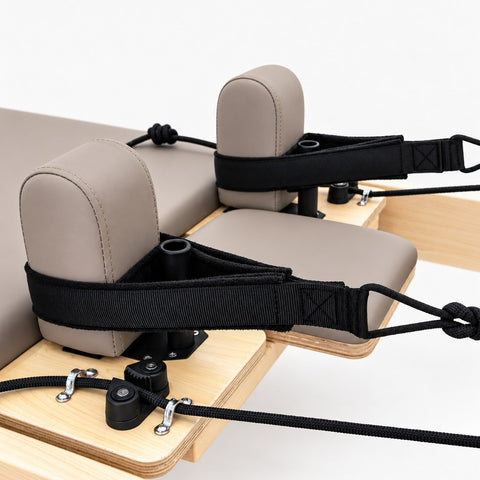

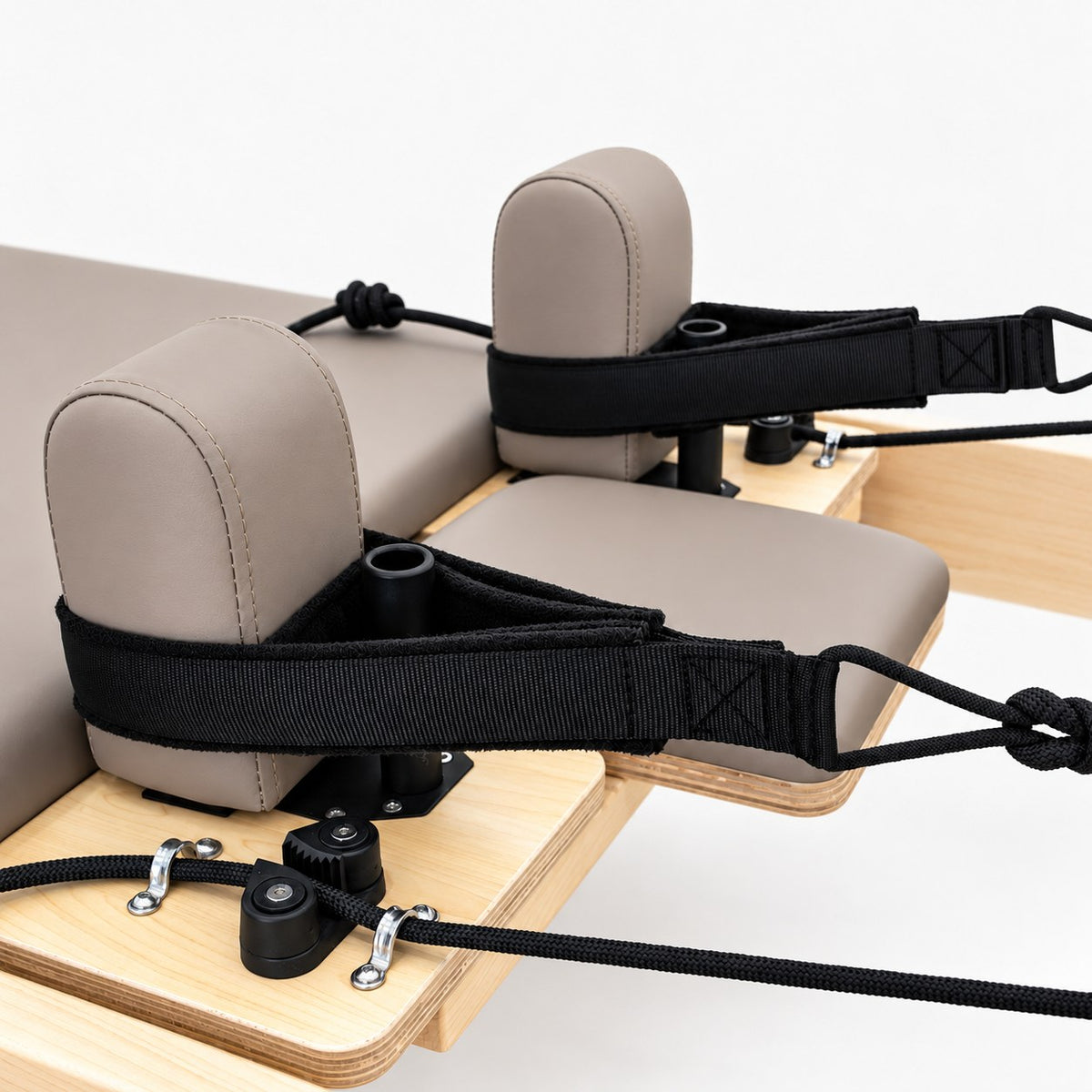

- Carriage: padded shoulder rests and handle straps

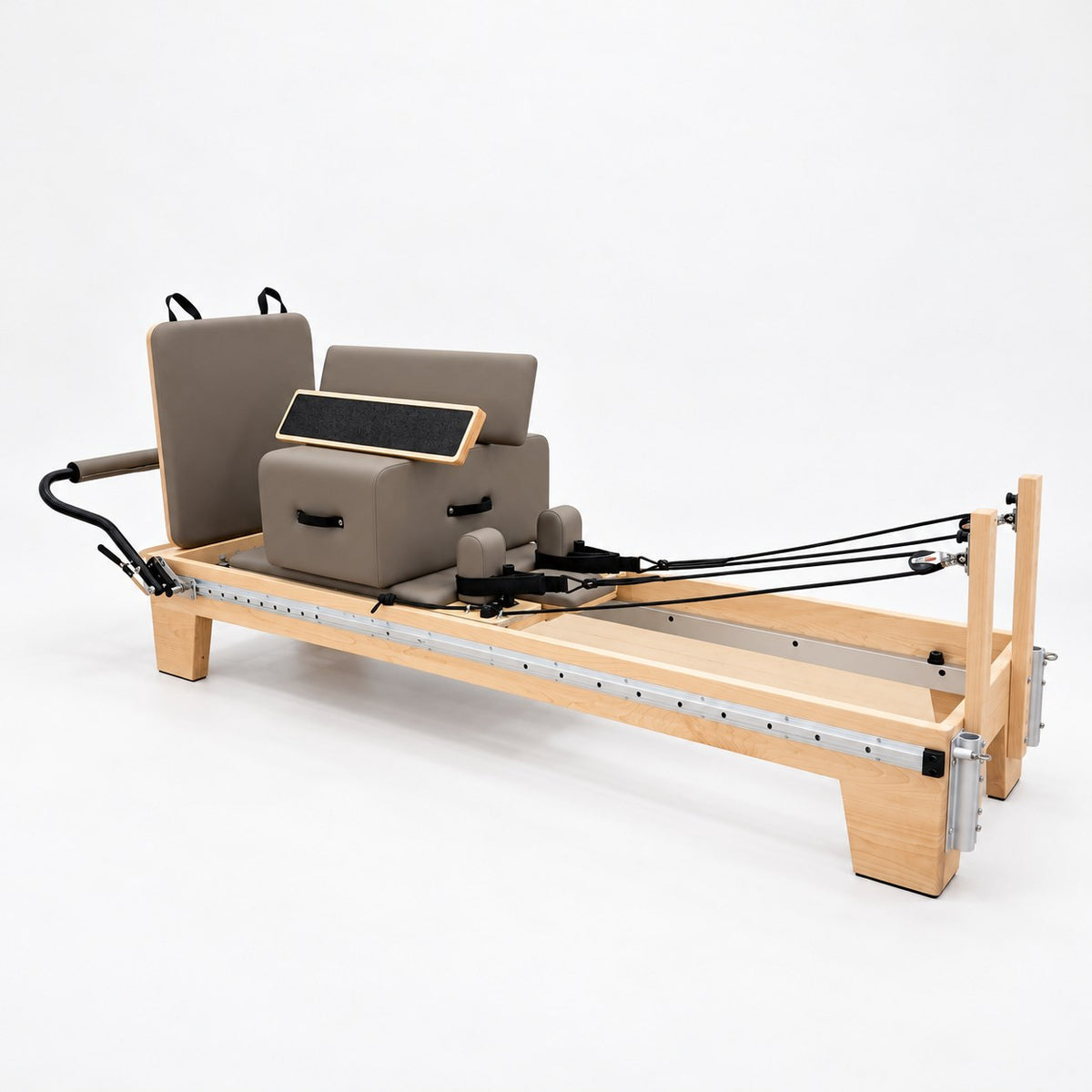

- Included: sitting box and jump board

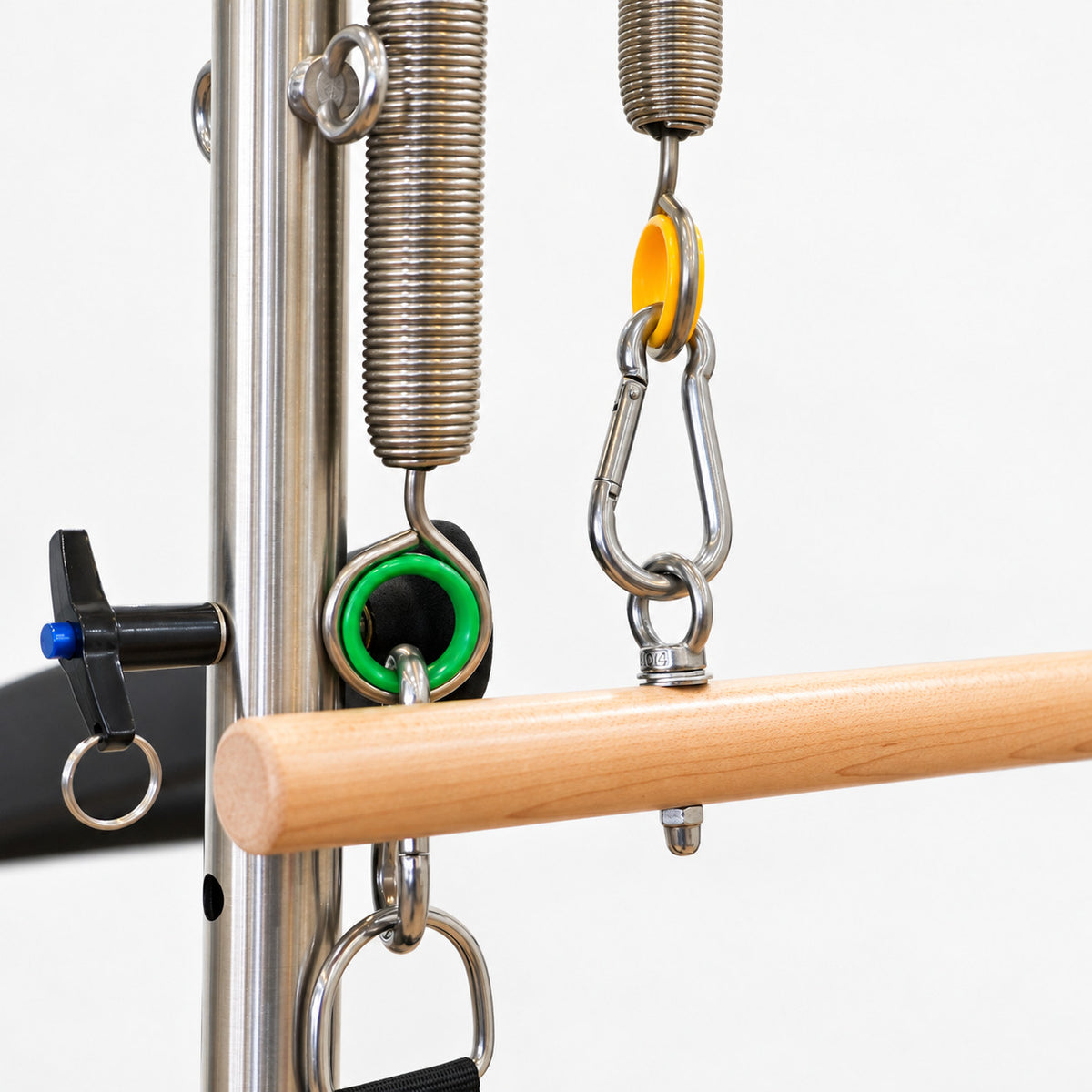

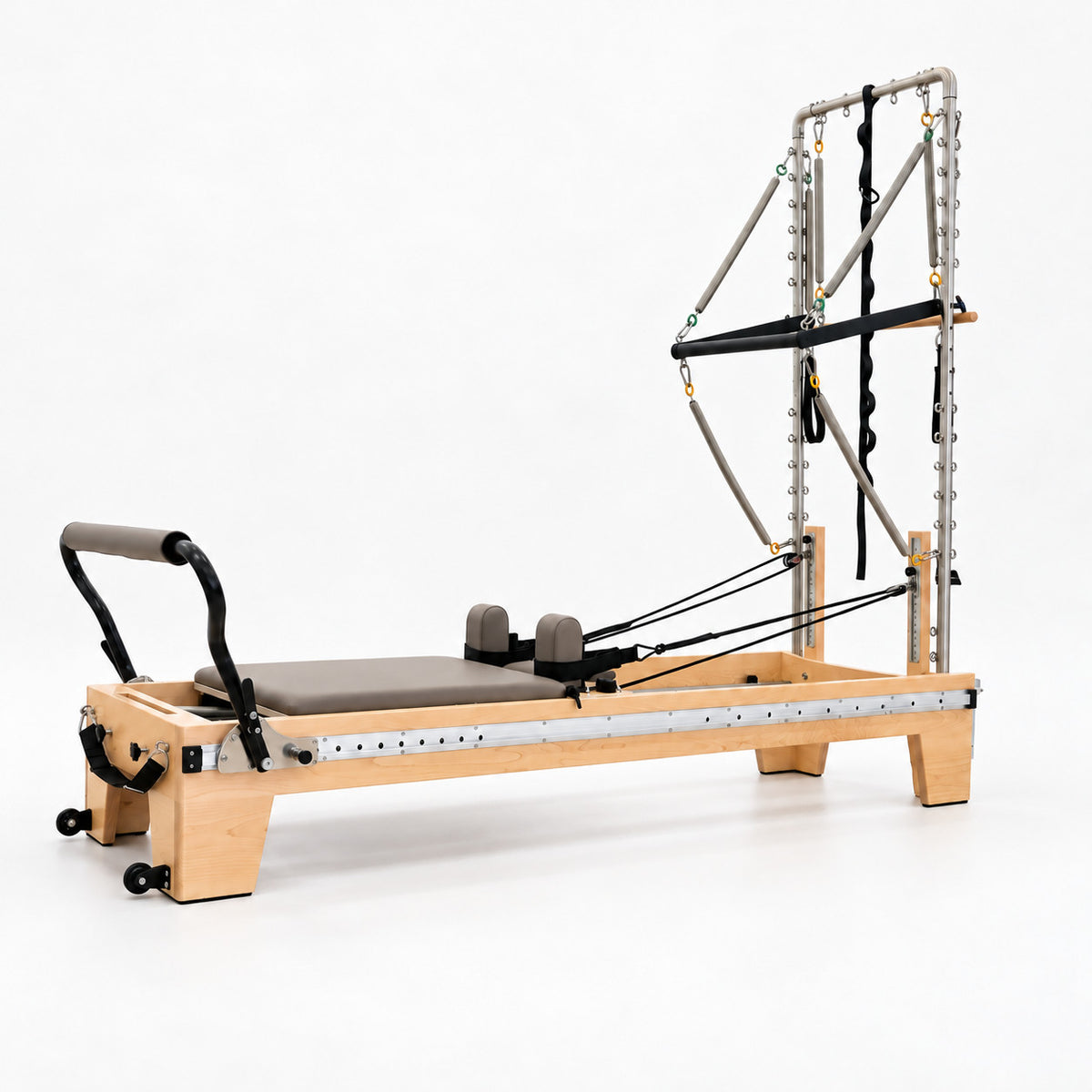

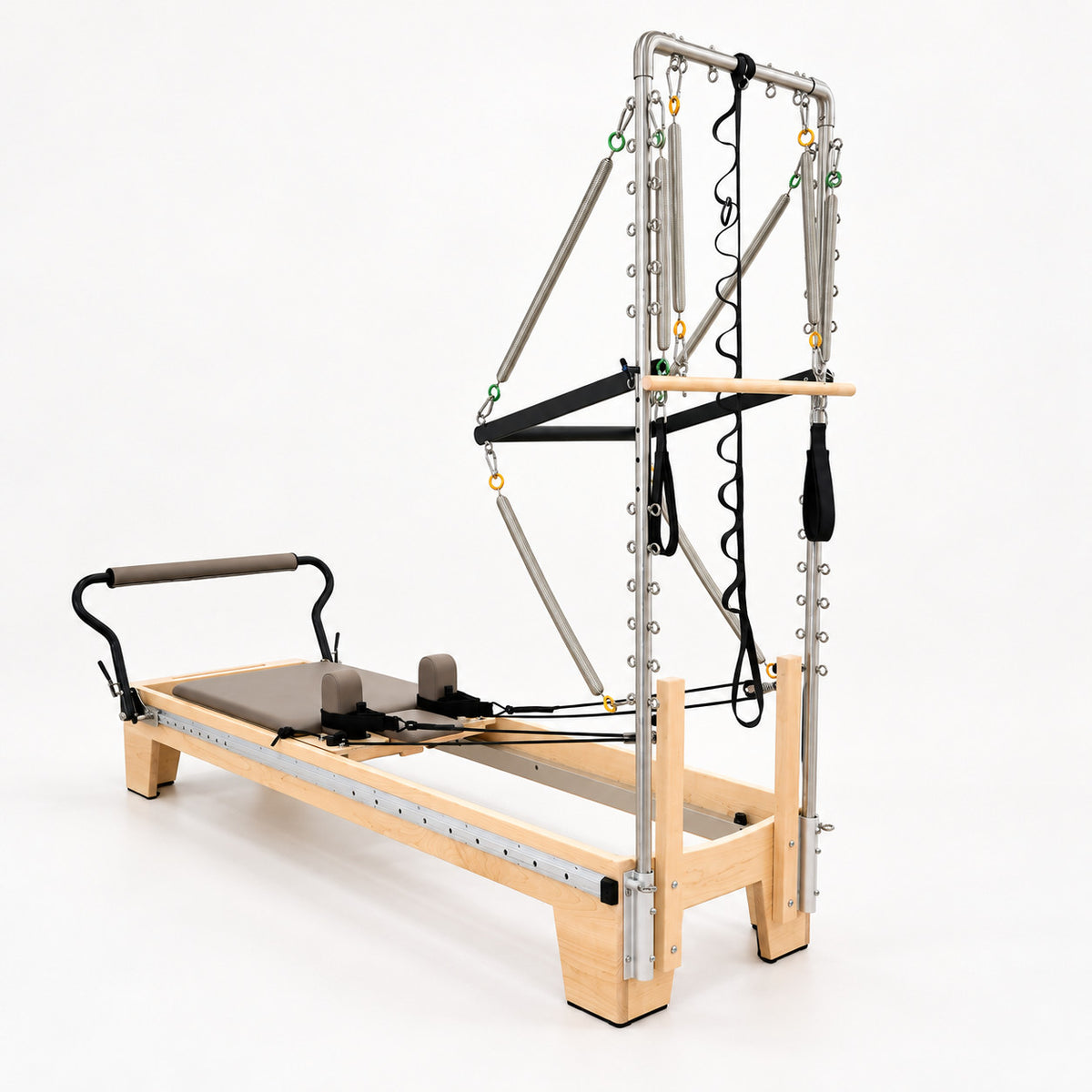

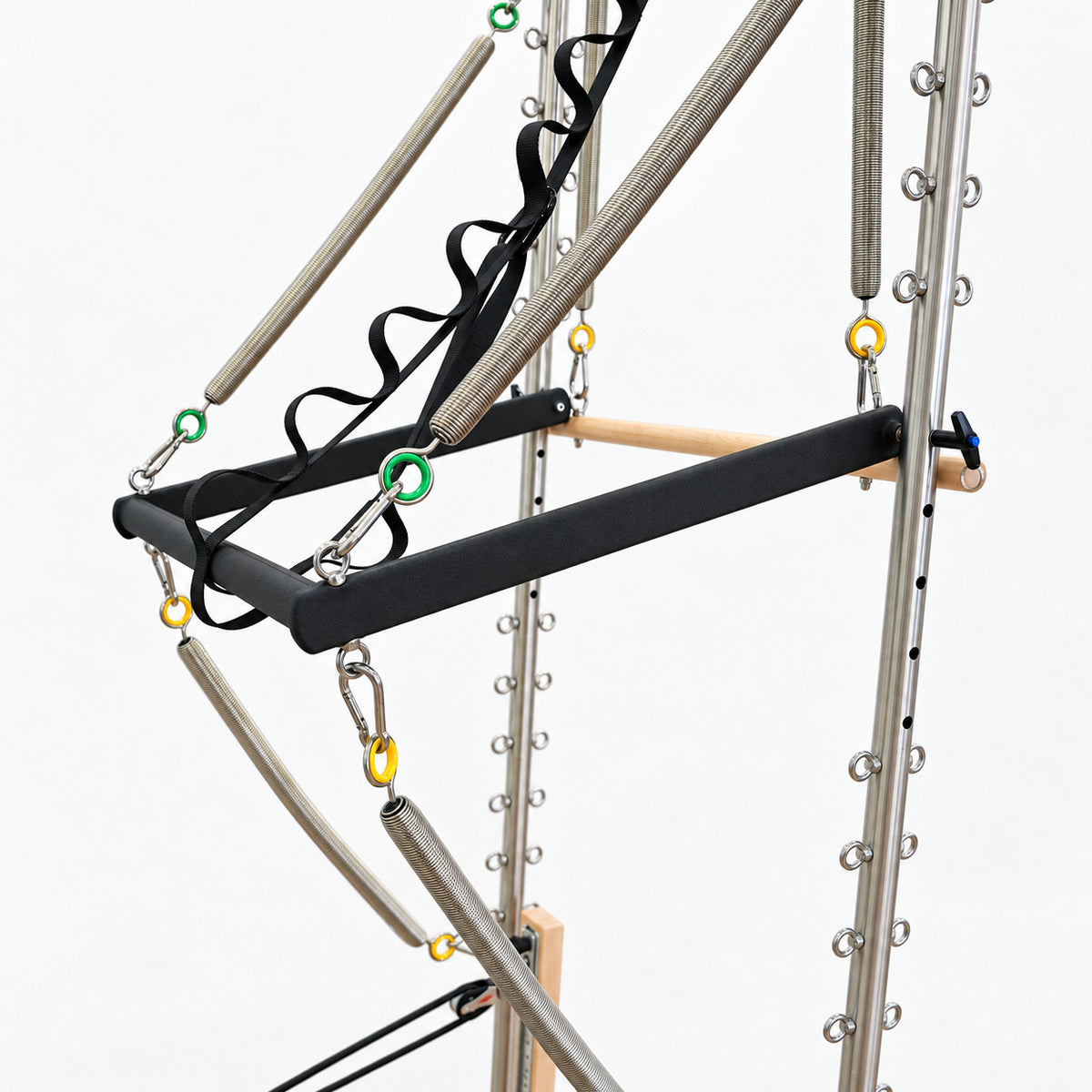

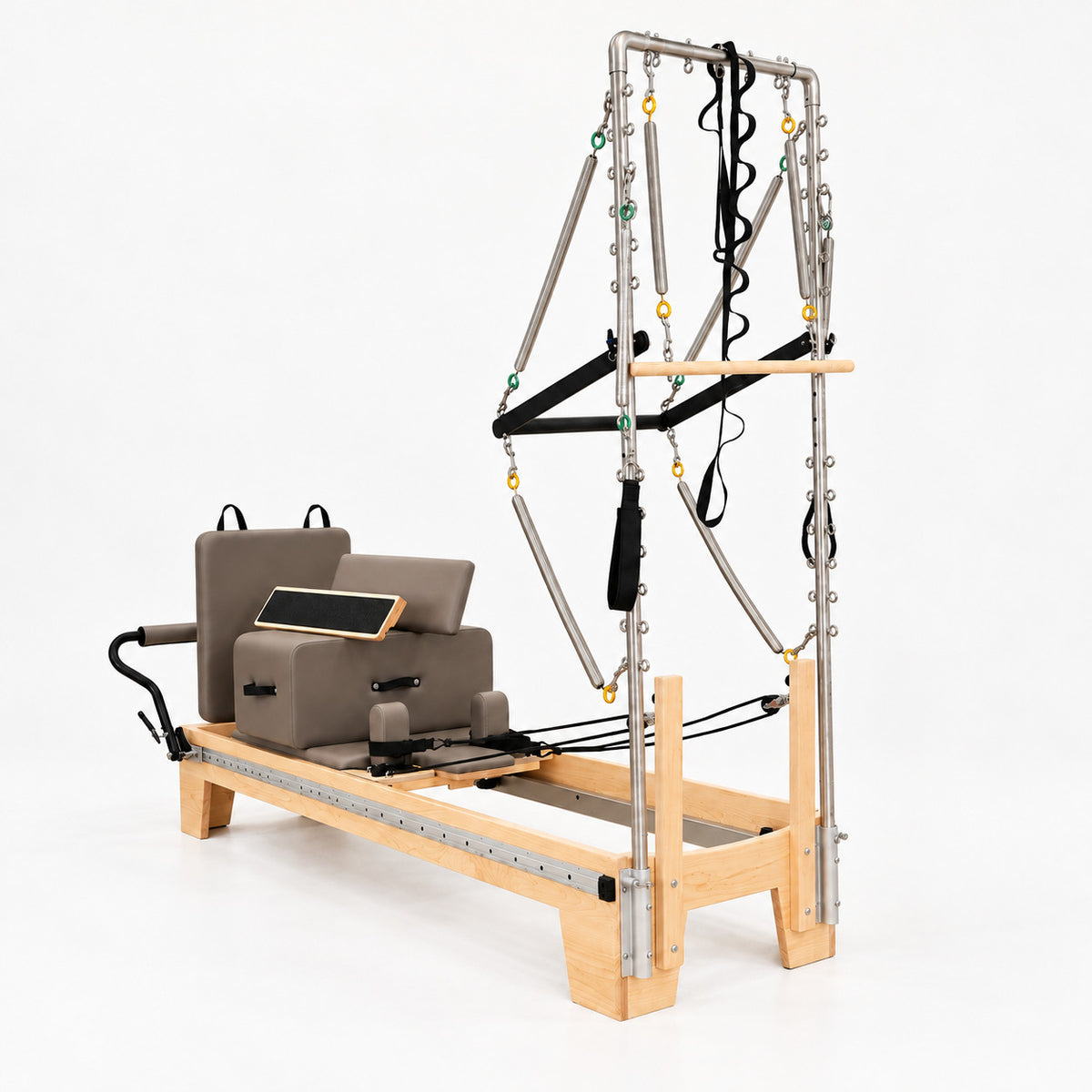

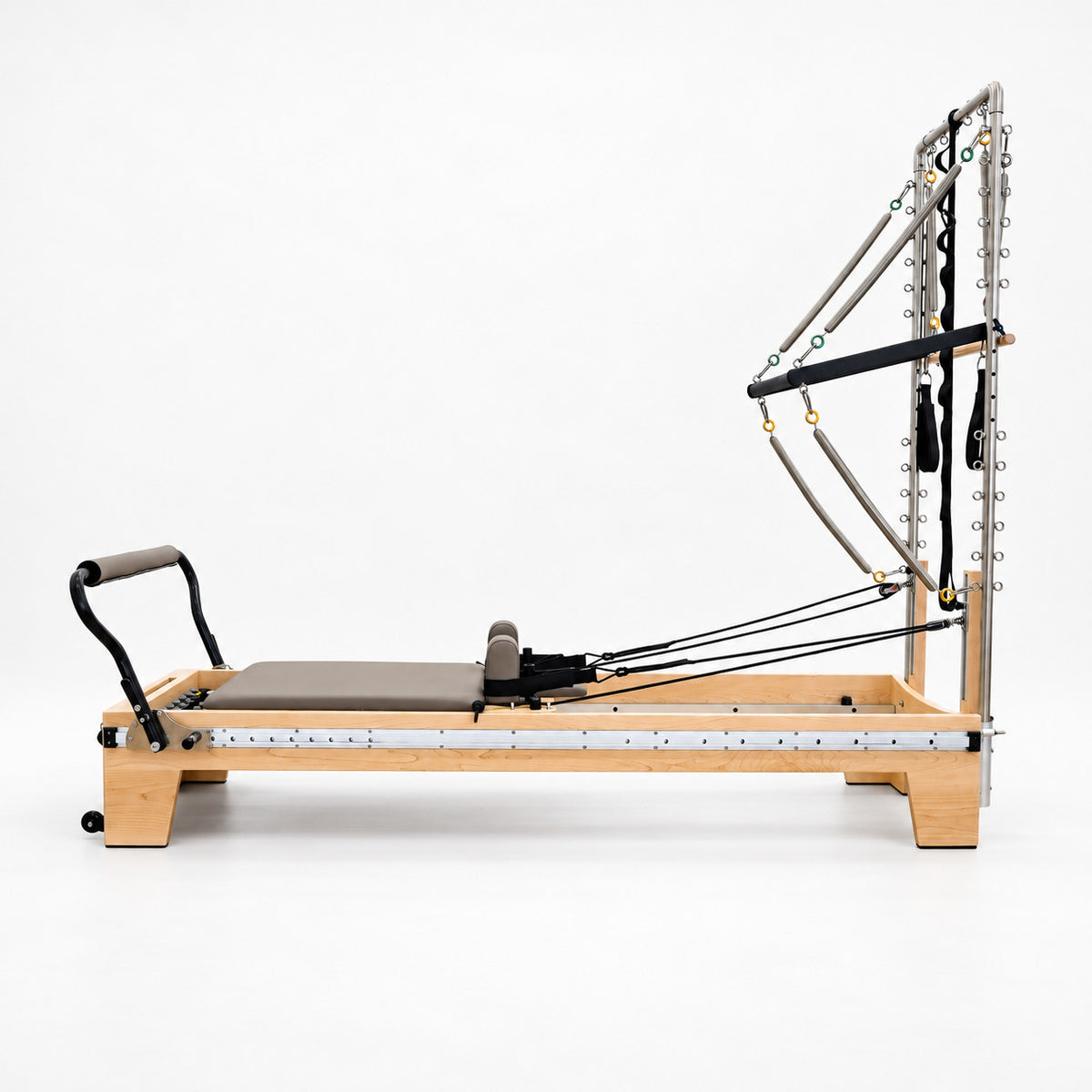

- Tower Edition: half tower, 2,000 mm (78.7 in) tall at Studio Height, about 2,270 mm (89.4 in) at Rehab Height
- Weight: 93 kg (205 lb), Studio Height without tower
Reformer size 89.8 in L × 26.8 in W × 13.4 in or 24 in H · 205 lb
We work for clinics and studios
Buy it once. Never carry the risk.
White Glove Delivery
Freight delivery with liftgate, placement in your room of choice, unpacking, and packaging removal. Included with every order. Arrives 95 percent assembled.
Free Floor Plan
Type your room size and see it drawn: how many reformers fit and the space around each one.
Complimentary Opening Kit
Rings, mats and weights, chosen for your programming, arrive with your reformers. One less thing on opening week.
Claim yours
Adding reformers to your practice?
Send us your room dimensions, treatment-room count and opening date. Within 24 hours we come back with a unit count, the Studio and Rehab Height mix, and a delivery window. Then we draft the floor plan.
Plan my clinicFrequently Asked Questions
What does Rehab Height change?
The legs. The frame rises from 13.4 in to 24 in, so patients sit down and stand up at treatment-table height and the practitioner works standing. Footprint, springs, carriage and footbar are identical.
Can one clinic run both heights?
Yes. Height is chosen per unit, so treatment rooms can run Rehab Height and a group room Studio Height on the same order.
How long is the lead time?
Every reformer is custom-built to order. Production and preparation take 6 to 9 weeks, then freight delivery takes 10 to 14 business days. Total estimated delivery is 8 to 12 weeks from order confirmation.
What is included with each reformer?
White glove delivery, a sitting box and jump board, and 95% assembly done before it reaches your door.
What happens if it arrives damaged?
We replace the affected unit at no cost and cover return freight.
Do you support clinic owners after purchase?
You get direct access to our team: a real person for equipment questions, setup guidance and troubleshooting, plus partner studios across the US you can visit before you decide.
Can we choose the springs?
Yes. Each unit ships with six German DRAHTWERK WAGENER springs in the mix you choose, from four tensions: very light, light, medium and heavy. The standard set is two yellow, two red and two green.
Complete the Clinic
You Will Also Love...
The Timber Therapy Reformer
Design Your Reformer
Get Your Studio Quote
Outfitting a studio? Get pricing for your lineup.
ACH, wire, and card accepted · Net terms available for multi-unit studio orders
A maple rehab reformer built for clinics: set to treatment-table height, with a footbar that moves to the patient.
- Rehab Height: a 24 in frame. Patients sit down and stand up at table height, and the practitioner works upright
- Sliding footbar: 19 locking positions along an aluminum side rail, set to each patient's range in seconds
- German springs: six springs of DRAHTWERK WAGENER wire in four tensions, from very light to heavy, mixed to your programming
- Studio Height: the same machine at a standard 13.4 in frame
- White glove delivery included: placed and assembled in your room of choice
For physical therapy, chiropractic and kinesiology practices, and the studios that work beside them.
Specifications
- Frame: maple, upholstered to order in 26 colors
- Footprint: 2,280 × 680 mm (89.8 × 26.8 in)
- Frame height: Studio Height 340 mm (13.4 in), Rehab Height 610 mm (24 in)
- Footbar: 19 positions. 10 at 50 mm spacing through the footwork range, 9 at 100 mm toward the head end
- Springs: six, German DRAHTWERK WAGENER wire. Four tensions: very light (yellow), light (blue), medium (red), heavy (green). Mix chosen per unit; standard set 2 yellow, 2 red, 2 green
- Rope risers: height-adjustable pulleys on aluminum tracks
- Tower Edition: half tower, 2,000 mm (78.7 in) tall at Studio Height, about 2,270 mm (89.4 in) at Rehab Height
- Included: sitting box and jump board
- Weight: 93 kg (205 lb), Studio Height without tower
- Maple frame, upholstered to order in 26 colors
- Two frame heights: Studio Height 13.4 in (340 mm), Rehab Height 24 in (610 mm)
- Sliding footbar with 19 locking positions on an aluminum side rail
- Six German DRAHTWERK WAGENER springs in four tensions, mix chosen per unit
- Height-adjustable rope pulleys on aluminum tracks
- Padded shoulder rests and handle straps
- Sitting box and jump board included
- Tower Edition: half tower
Reformer Size: 89.8″ L × 26.8″ W × 13.4″ or 24″ H
Reformer Weight: 205 lb (Studio Height, without tower)
Frame & Footbar: 10 years, the longest structural warranty in the reformer category.
Reformer Components: 12 months full coverage.
If any unit arrives damaged, we replace it and cover return freight.
